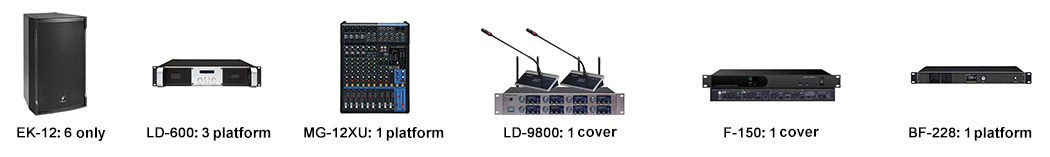

Other Models: 80-100 sq. m 120-140 sq. m 160-180 sq. m 200-220 sq. m

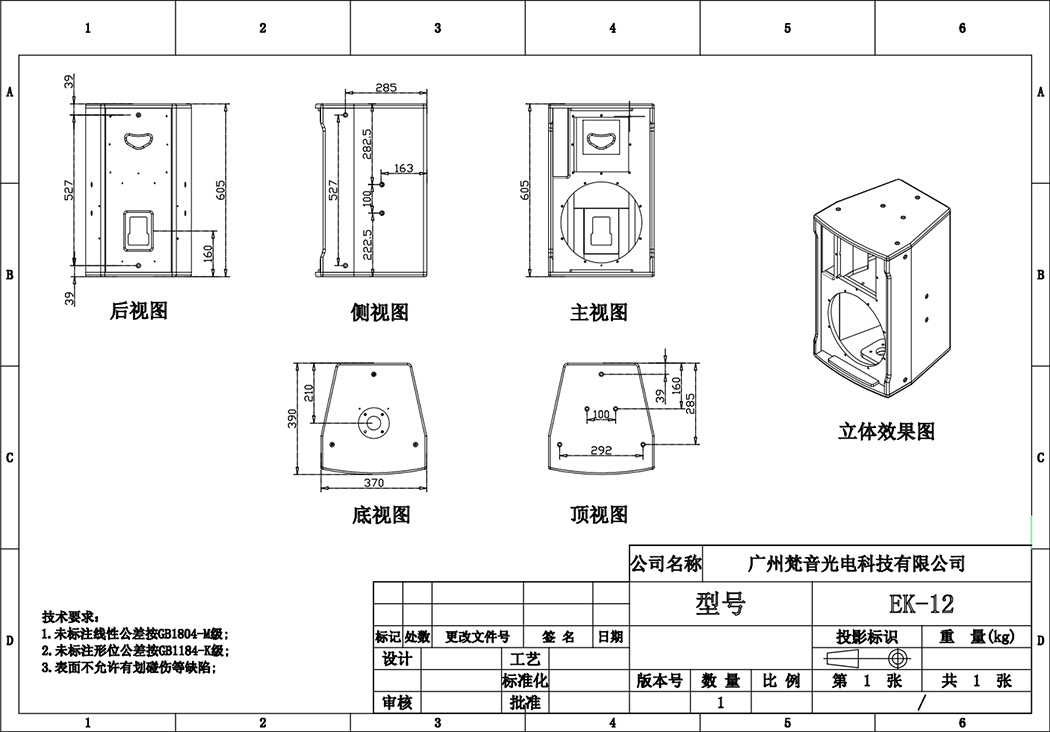

EK-12 product drawings

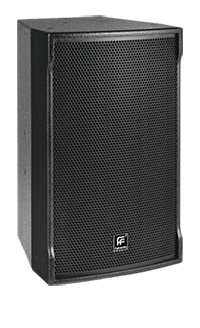

EK-12 Product Description:
The EK-12 is a high-power, rugged two-way system with a powerful 12" (310mm) LF driver and a 1.75" (44.4mm) HF compression driver mounted on a continuously directional 90-degree × 60-degree horn. The high-frequency horn can be rotated so that the multi-angle cabinet can be placed both horizontally and vertically. Streamlining the system, it's ideal for applications that require efficient and reliable full-range loudspeakers. It is also suitable for fixed installations and quick movable installations.
EK-12 parameters
Application places：studios, multi-function halls, sports venues, distributed systems, concert halls, etc.
Model：EK-12
Woofer：1×12(in)(310MM)
TWEETER：1×1.75(IN)(44.4MM)
System：2way speaker
Withstand power：400W
Peak power：1600W
Sensitivity：98dB1w/1m
Maximum sound pressure：128dB
Impedance：8ohm
Frequency response：52Hz-20KHz
Protection circuit：highly intelligent electronic protection system
Color：Black
Surface treatment：polyurethane spot paint
Product size：width 350× height 600× depth 382MM
Product net weight：20.70KG

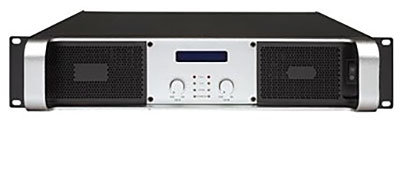

LD-600 Product Description:
LD series power amplifiers adopt stable and reliable circuit design; The op amp of the FET input is selected as the front, the common base circuit is used as the inverted phase, and the common collector circuit is used as the output. Stable performance, convenient input and output interface, complete functions. The perfect protection circuit has: over-current protection, output DC voltage protection and self-locking (which can avoid the harm caused to the speaker by repeatedly opening and closing the relay in the critical state of protection), temperature protection, start-up delay and temperature control stepless speed regulation fan air cooling and heat dissipation.
Technical Indicators
Model：LD-600
8Ω power：2*600W
4Ω power：2*850W
8Ω bridge power：2*1700W
Total Harmonic Distortion：Normal Operating Conditions, 1KHz <0.025%
Intermodulation Distortion：Normal operating conditions, 60Hz/7kHz—4/1 <0.075%
Frequency Response: Normal operating conditions, 20Hz-20kHz < +/- 0.25dB
Power bandwidth：-3dB 10Hz-50kHz under normal operating conditions
Phase response：under normal working conditions, 20Hz-20kHz < +/- 8 degrees Signal-to-noise ratio: 1KHz, 0.775V input, A-weighted, >110dB
Damping coefficient：Normal operating conditions, 63Hz >1500
Slew rate：1us/1ms narrow pulse, 32dB gain >100V/us
Input impedance：Normal operating conditions, 1KHz, balanced input 20 kohm
Minimum load impedance：Stereo >1.6 ohm
Bridging >3.2 ohm
Parallel >0.8 ohm
Separation：1KHz, 0.775V input >80dB
Common Mode Rejection：1KHz >80dB under normal operating conditions

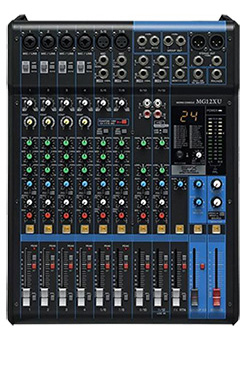

Product description of MG-12XU
12-channel mixer
Up to 6 microphones / 12 line inputs (4 mono + 4 stereo)
2 group bus + 1 stereo bus
"D-PRE" mic preamp with inverted transistor circuitry.
Single-knob compressor
Advanced Effects: SPX, with 24 sets of preset effects
24-bit/192kHz 2 in/2 out USB audio function
PAD switch on the mono input channel
+48V phantom powered
XLR balanced output
Worldwide internal global power supply
Metal body

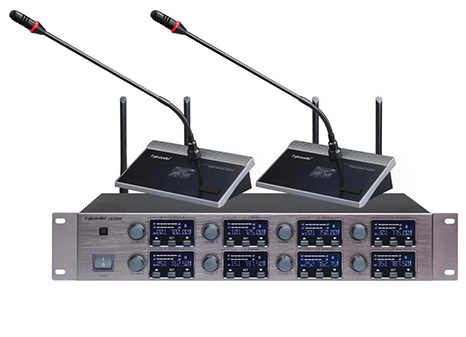

LD-9800 Product Description:
1. Adopt UHF500-900MHz frequency band and PLL phase-locked loop design
2. The host has 400 channels, and the reasonable design is convenient for users to use multiple sets at the same time or stack machines;
3. Each channel is equipped with a unique ID number to enhance the anti-interference function and easily avoid all kinds of interference;
4. Each channel of the host has an LCD screen to display the working channel, working frequency and received signal;
5. Infrared frequency, transmitter can be interchanged, simple operation, advanced function;
6. The main machine is equipped with a lock key function to better manage the system.
7. The all-metal panel with brown PMMA perfectly covers the built-in display screen of the host, and the content can only be displayed when the power is turned on.
8. The host is equipped with 4 rubber receiving antennas to enhance the received signal;
9. It has independent output (XLR) and hybrid (φ6.3mm) output, which is convenient for connecting audio processing and power amplifier equipment;
10. Balanced and unbalanced two options output end mound depending on Σ Huang Napu Ga with fir spp＆#65533;
11. Distance: 80-100 meters in open environment, 50-80 meters in complex environment.
12. It is suitable for all kinds of meetings and speech occasions.

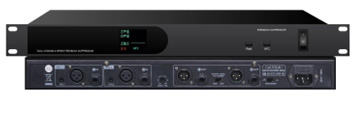

F-150 Feedback Suppressor Product Description
Features:
1. Fully automatic detection of on-site acoustic machinery δ SP system filters the sound, automatic mixing of bass compensation, intelligent high-speed feedback processing, and eliminates the return transmission to the greatest extent in full digitalization.
2. Full-color Chinese display, 2-inch OLED display content is more comprehensive and intuitive.
3. Automatically adapt to the acoustic environment, no need to debug, quickly correct the function, ensure the sound quality, and reduce the delay.
4. One-key setting, making engineering debugging more convenient and fast.
5. When more than 10 microphones are used at the same time, the microphone pickup distance will be effectively increased by 30~150cm.
6. Stereo channel input and output, more compatible with other engineering equipment.
7. Under normal use, the machine does not need to be debugged, and automatically adapts to the acoustic environment (the automatic adaptation process takes about 10 seconds), and the whole system will get an additional gain of 6~15dB.
8. If the sound quality is abnormal in the use environment (after many howls during system debugging), please reduce the volume appropriately, and then press the quick correction button of the machine, at this time, a signal sound of 1 second to 6dB will be randomly generated, and the sound quality will return to normal.
Applicable places: large, medium and small conference rooms, lecture halls, multi-function halls, courts, banquet halls, education systems, etc.
Technical parameters
Processing：Dual DSP chip processing
Professional sampling rate：48KHz
Frequency response：125Hz~15KHz (sound mode), 20Hz~15KHz (music mode)
Distortion：<0.1%@1KHz Signal-to-noise ratio: >90dB
Signal Delay：7m/s (Music Mode) 11m/s (Sound Mode)
Input impedance：20KΩ
Rated voltage：220V±10%50Hz
Temperature range：-10~55°C
Weight：3.9Kg
Size：480*220*44mm
It automatically adapts to the acoustic environment without debugging, and the maximum size of 6 dB-15 dB can be used well in different environments

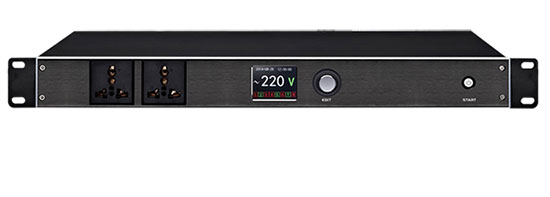

BF-228 Product Description:
Maximum input current: 50A
Maximum output current of a single channel: 16A
Working voltage: 220V/50-60Hz
Power per channel: up to 3000W
Up to 3000WAC input voltage = AC output voltage (please specify before placing an order, optional voltage: 110V input = 110V output, 220V input = 220V output)
Output power socket: universal socket, in line with European and American standards. 8 controlled multi-sockets on the rear panel
Socket material: Each socket is made of phosphor copper, which is installed only after passing the inspection
The interval between each channel: 1 second, with 1 switch indicator for each channel
Relay: Ningbo Songle brand (original genuine)
Circuit board circuit: 60% high-purity flow technology is used, and it is strengthened and executed
Transformer: A&C original genuine
Power cord: 3*6 square cable, cable configuration length of 1.5 meters
Voltage Display Meter: Digital display voltmeter
Chassis height: 1.5U (according to cabinet standards)
Switch: Circular switch
Online support: None
Filter: Capacitive filtering
